Tonebender MK I 1965 - Clon
This is a Fuzz Clon, the Tone Bender MK I original circuit 1965 by Sola Sound Ltd, Vox and many others.
Well, this is a clon with N.O.S Germanium Transistors Mullard OC78 wich sounds really amazing.
I kept all as in the original one, but I used 1% metalfilm resistors (instead of 5% carbon film), those are the best choice in audio aplications as well as the polyester capacitors that I used.
It is a Real London Fuzz, vintage and modern at the same time ;).

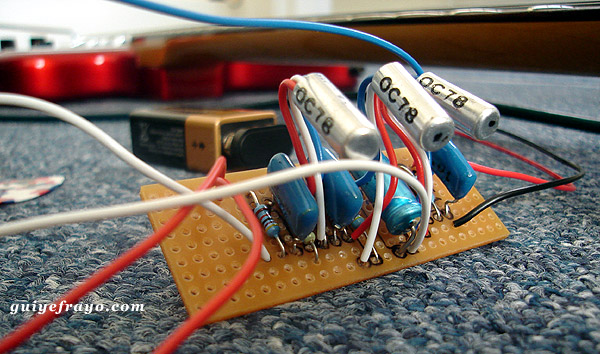

Inside the pedal [ pic 1 ]

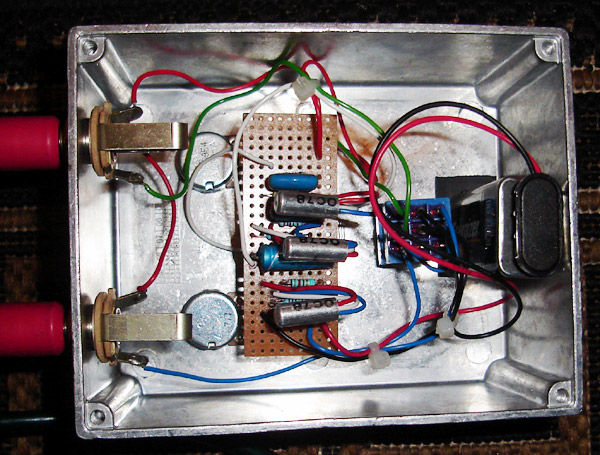

Inside the pedal [ pic 2 ]

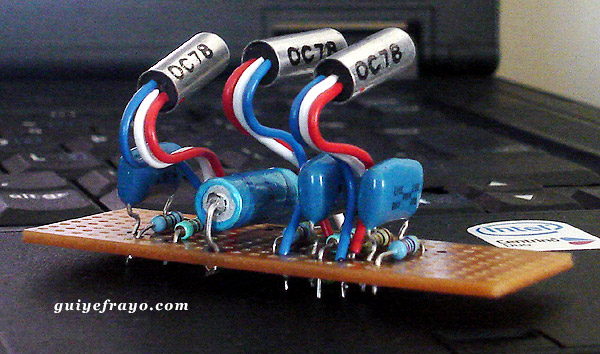

Inside the pedal [ pic 4 ]
Circuit JPG [ Circuit ]
Audio Sample
Circuit [ 3PDT Wiring ].
